1. Introduction

The main purpose of this article is to give a basic understanding of the standard music communication method (MIDI) and explaining how DirectMusic controls the music synthesizer features. It also details how to use the DirectMIDI class library to develop applications based on MIDI.

2. What about MIDI?

2.1 What is MIDI?

MIDI stands for Musical Instrument Digital Interface and is a digital communication protocol. After the creation in August 1983 of MIDI 1.0 Specification every device that has MIDI capabilities must work with any other instrument that uses the same specification using the same data structures and formats. This protocol is a language which allows connecting different instruments from different manufacturers and providing a link that is capable of transmitting and receiving digital data which encode different commands to which the other instrument must comply.

These commands are based on the MIDI specification and include a common language that provides information about events, such as note-on, note-off, velocity, timing information, System Exclusive (SysEx) and patch change.

MIDI information is transmitted through a MIDI cable that has DIN-type male plug connectors with five pins. Two of the pins are used to transfer digital binary information (MIDI Code). One of the pins issues a steady stream of five volts, while the other pin alternates between 5 volts and 0 volts to represent binary information (on and off). The third pin is a ground and the remaining two pins are currently not in use.

This serial interface was chosen by MIDI manufacturers because it is less expensive than a parallel interface and has longer range. The speed of a MIDI serial interface is 31,250 bits per second. 10 bits are needed for every MIDI digital word, therefore allowing the transmission of 3125 messages per second.

2.2 The MIDI specification

The MIDI specification is published and maintained by the MIDI Manufacturers Association (MMA). The MMA was formed in 1984 to keep and enhance the MIDI specification so that no one company would have control. It is comprised of over one hundred hardware and software companies from both the computer and music industries with the aim to improve and standardize the capabilities of MIDI-based products. A complete list of the manufacturer's ID numbers can be found at the MMA site.

The use of MIDI and the implementation of the specification is available to anyone without restriction, but the official document which describes the complete MIDI specification is copyrighted and not accessible on any WWW site. The specification details all of the approved MIDI messages and uses including General MIDI and Standard MIDI files. At present the MMA keeps specifications for the latest MIDI technlogies such as GM2 (General MIDI 2), DLS2.1(Downloadable Sounds 2.1) and GM Lite for mobile applications.

3. Computers playing music

One of the advantages of the MIDI system is the possibility to use a computer for editing and playing MIDI message sequences. Besides its processing speed and its storage capacity, the computer allows modifying any music parameter with great precision and simplicity.

Since the creation of the MIDI standard, a great variety of commercial programs for musical composition have appeared on almost every platform. The first programs were on 32 bit-based computers like the Amiga, the Atari and also the well known Apple Macintosh.

Nowadays in the PC domain there is a high level of MIDI software development under Windows as well as under Linux.

The applications based on the MIDI interface have also evolved from the simple musical instrument interconnection to the domain of electronic light control, artificial intelligence and educational applications.

The most common problem found when programming a MIDI-based system is the hardware-level access. Fortunately, in Windows-based PCs there are two APIs offered by the operating system which allow accessing hardware ports at the low level. These APIs are the Windows MIDI API and DirectMusic on which this article focuses and which are explained hereby.

3.1 DirectMusic and MIDI

DirectMusic is an important part of DirectX and is installed in the system as a set of components. In combination with DirectSound, DirectMusic provides a method for playing music and sound effects in games and other applications in an interactive way. Its API provides a higher abstraction layer to DirectSound which makes easy mixing sounds and applying effects like 3D positioning. It also allows performing the playback of multiple segments simultaneously and MIDI files giving more realism to the games. One of the most exciting features in DirectMusic is the possibility to control MIDI devices for receiving and sending musical data and the use of DLS2 (Downloadable Sounds Level 2 standard) which provides a higher-quality sound synthesis and extends the number of sound fonts.

3.2 Main DirectMusic COM interfaces for Win32 MIDI programming

DirectMusic, as a part of DirectX, uses the Component Object Model (COM technology). This means that it is object oriented and based on distributed computing. Besides the great advantages of the COM technology like location transparency, binay standard format and runtime polymorphism, the DirectMusic COM objects are composed of interfaces. In the following lines, the most important interfaces involved in a DirectMusic MIDI application are commented:

3.3 Developing applications with the DirectMIDI class library

3.3.1 Introduction - DirectMIDI layout

The main kernel of the library is based on its ten related classes which define the different objects involved in a MIDI based application encapsulating the code to realize them.

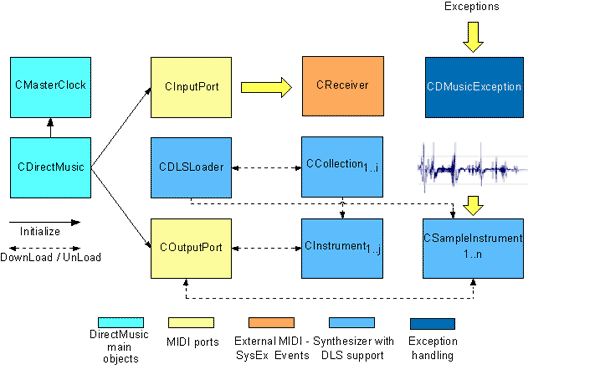

The next diagram shows the objects created by an application which uses DirectMIDI:

As you can see, there is a main object of the CDirectMusic class type which encapsulates the DirectMusic COM instantiation of a Win32 based application. This object is the responsible to initialize the MIDI port objects which are divided in two categories: input ports for incoming MIDI messages such SysEx data or typical MIDI 1.0 messages and output ports for sending data in SysEx format or MIDI messages. There is an additional object named CMasterClock which provides enumeration and selection of a hardware timer as master clock.

There are another three objects related to the COutputPort object directly and indirectly, this is the case of the CDLSLoader that is the responsible to load DLS files in order to store them into a CCollection object. This object represents a set of instruments in DLS 1.0/2.0 data format and allows extracting its instruments to better containers for them, called CInstruments objects. These are the responsible to keep an instance of a particular instrument for a better handling and organization.

Once we have all the instruments selected from the collections, we can proceed to download or unload them to or from a specific MIDI program in the synthesizer in order to play them.
In addition to the CInstrument object, there is another similar object provided by the DirectMIDI library which allows storing  waveform data loaded from a .wav file and programatically generated waveforms. This object, called CSampleInstrument, provides help functions to adjust envelopes, LFO's and regions before downloading to the output port.

Finally, the CDMusicException class handles all exceptions produced in the application and shows a detailed information about the problem which generated the error.

3.3.2 Starting the application

3.3.2.1 First Step: Setting up the development environment

You can initiate the application in many different kinds of projects with your Visual Studio and the DirectMIDI wrapper library, such as MFC's, Win32 standalone and Win32 console applications, but to make it easier I'm going to explain how to build a simple Win32 console application that shows all the characteristics available in the library. Therefore, you must start up your Visual Studio and select a Win32 console application project with the "A simple application" option selected. Once you have created a simple project you need to include all the DirectMIDI headers and .cpp files of the class library in it. To do this, go to Project in the menu bar, select Add to project, Files and then add to your project all the files existing in the DirectMIDI folder related to the MIDI part and subfolders. Therefore, in order to create an application oriented to MIDI we need to include the next necessary header files: CDirectMidi.h, CDirectBase.h and CMidiPart.h  and all the .cpp files required when including this headers like the CSegment.cpp. To perform this, in case you have the Visual Studio 7 (.NET) you must select the Project option from the main menu and then click on the Add existing item option to include the class library files.

Now you have all the code necessary in your hands to start programming a new musical application. It's important you have installed the DirectX8/9 SDK's in your computer in order to compile and link your project correctly. If you have it already installed and configured, that's fine for this, if not, go to Tools in the menu bar, select Options and then click on the Directories tab to add the path to the DirectX8/9 headers and library files. If you have the Visual Studio 7 (.NET), go to Tools in the menu bar, click on Options and then open the Projects folder. Expand the Show Directories for combo list and select the library and include files option. Finally, add the header and library files directories to their respective lists.

3.3.2.2 Second Step: The first lines of code

The compiler should know what external code is going to be used in the current .cpp file of work. For this, you must use the #include directive in order to tell the compiler there is a reference to external code for this project in other files. The required headers are shown in the code below:

// ANSI I/0 headers
#include <conio.h>
#include <iostream.h>
// Math header
#include <math.h>
// The class library wrapper
#include ".\\DirectMidi\\CDirectMidi.h"
// Inline library inclusion
#pragma comment (lib,"dxguid.lib") // guid definitions
#pragma comment (lib,"winmm.lib")
#pragma comment (lib,"dsound.lib")
#pragma comment (lib,"dxerr9.lib")

using namespace std;	 // Standard C++ library header
using namespace directmidi; // the wrapper global namespace

// Maximum size for SysEx data in input port
const int SYSTEM_EXCLUSIVE_MEM = 48000;

// Defines PI
const double PI = 3.1415926;

The directive #Pragma comment instructs the linker to create an object file including the required libraries. The last two lines of code above defines the constants that will be necessary in this example project.

3.3.2.3 Third Step: Preparing the music capture

You should know that the CInputPort class is the responsible for managing the incoming MIDI events. These MIDI events are captured by a thread which calls two overloaded pure virtual member functions declared in the CReceiver class depending on the type of data arrived to the port. This two different types of data can be either unstructured MIDI data (System Exclusive) or structured (typical MIDI messages).

In order to override this virtual functions we need to derive a class from CReceiver as shown below:

// Derived class from CReceiver

class CDMReceiver:public CReceiver
{
public:
    // Overriden functions
    void RecvMidiMsg(REFERENCE_TIME rt,DWORD dwChannel,DWORD dwBytesRead,
                         BYTE *lpBuffer);
    void RecvMidiMsg(REFERENCE_TIME rt,DWORD dwChannel,DWORD dwMsg);
};


Once made this, you can program some code to process these events:

// Overriden function for SysEx data capture
void CDMReceiver::RecvMidiMsg(REFERENCE_TIME lprt,DWORD dwChannel,
                               DWORD dwBytesRead,BYTE *lpBuffer)
{
    DWORD dwBytecount;

    // Print the received buffer
    for (dwBytecount = 0;dwBytecount < dwBytesRead;dwBytecount++)
    {
        cout.width(2);
        cout.precision(2);
        cout.fill('0');
        cout << hex << static_cast<int>(lpBuffer[dwBytecount]) << " ";
        if ((dwBytecount % 20) == 0) cout << endl;
        if (lpBuffer[dwBytecount] == END_SYS_EX)
            cout << "\nSystem memory dumped" << endl;
    }
}

// Overriden function for structured MIDI data capture
void CDMReceiver::RecvMidiMsg(REFERENCE_TIME lprt,DWORD dwChannel,
                               DWORD dwMsg)
{
    unsigned char Command,Channel,Note,Velocity;

    // Extract MIDI parameters from a MIDI message
    CInputPort::DecodeMidiMsg(dwMsg,&Command,&Channel,&Note,&Velocity);

    if (Command == NOTE_ON) //Channel #0 Note-On
        {
        cout << "Received on channel " << static_cast<int>(Channel) <<
                " Note " << static_cast<int>(Note)
             << " with velocity " << static_cast<int>(Velocity) << endl;
    }
}

The first function reads the entire received buffer of SysEx data, prints the values formatted in hexadecimal numeric base and detects when the synthesizer reaches the end of data dump (End of SysEx data). Note that not all the SysEx data is received in an unique call to RecvMidiMsg, multiple consecutive calls can be made to this member function.
The second member function receives a typical MIDI message such as note-on or program-change in a double word format. If you want to parse the message in parts you must use the static function CInputPort::DecodeMidiMsg to extract each MIDI byte.

3.3.2.4 Fourth Step: Initializing objects

In this step we declare the main objects that will be used along the application. They are shown below:

int main(int argc, char* argv[])
{
    CDirectMusic CDMusic;
    CInputPort   CInPort;
    CDMReceiver  Receiver;
    COutputPort  COutPort;
    CDLSLoader   CLoader;
    CCollection  CCollectionA,CCollectionB;
    CInstrument  CInstrument1,CInstrument2;
    CSampleInstrument CSample1,CSample2;

// Continues

The first line declares an object of type CDirectMusic that is the responsible for instancing and initializing DirectMusic and will be the last object to be destroyed. The next one is the CInputPort that handles input ports. The third one is the CDMReceiver object which is a CReceiver derived class type and implements the overridden functions seen above. The COutPort object is the responsible for sending data to the device and download instruments to the port. The last objects manage the downloadable sounds that will be commented in the next step. Now, you are ready to start calling the methods and activating all the MIDI system. See below:

    // Initialize DirectMusic
try
{
    CDMusic.Initialize();
    // Initialize ports given the DirectMusic manager object
    COutPort.Initialize(CDMusic);
    CInPort.Initialize(CDMusic);

// Continues

The following code activates the input and output ports:

INFOPORT PortInfo;
DWORD dwPortCount = 0;

// Software Synthesizer selection
do
    COutPort.GetPortInfo(++dwPortCount,&PortInfo);
while (!(PortInfo.dwFlags & DMUS_PC_SOFTWARESYNTH));

// Output port activation given the port information
COutPort.SetPortParams(0,0,1,SET_REVERB | SET_CHORUS,44100);
COutPort.ActivatePort(&PortInfo);
cout << "Selected output port: " << PortInfo.szPortDescription << endl;

// Input port activation, select the first one (by default)
CInPort.GetPortInfo(1,&PortInfo);
CInPort.ActivatePort(&PortInfo,SYSTEM_EXCLUSIVE_MEM);
cout << "Selected input port: " << PortInfo.szPortDescription << endl;

// Sets up the receiver object
CInPort.SetReceiver(Receiver);

getch();

// Continues

The first lines enumerate all output ports and select the first software synthesizer existing in the system given a number from 1 to COutputPort::GetNumPorts in the first parameter of COutputPort::GetPortInfo. Before calling COutputPort::ActivatePort, it's necessary to call the COutputPort::SetPortParams method to indicate the kind of features we require in the output port (If zero is passed to this method, the default configuration for that parameter will be assumed). Then we can call COutputPort::ActivatePort by passing a pointer to an INFOPORT structure to activate the ouput port using the number of channel groups and sample rate parameters passed in the call to COutputPort::SetPortParams. The channel group parameter is the number of MIDI channels groups to be used in the software port, each channel group being a set of 16 MIDI channels.

One of the most important configurable parameters in the COutputPort::SetPortParams method is the sample rate parameter which is the frequency in Hz that we need to stablish for the sound quality in the output port. In this case we use 44100Hz as sample rate.

In the last three lines we select the input port for MIDI capture doing exactly the same, but this time, we don't enumerate any, we limit only to select a default one. Note that there is a second parameter in CInputPort::ActivatePort which indicates the maximum memory size reserved to allocate system exclusive data. In this case we reserve only 46.8 Kilobytes. If you leave this optional parameter, the default value will be 32 bytes, enough space to receive standard MIDI data. Finally, we establish the receiver object by calling the CInputPort::SetReceiver method. If you close the main bracket and run the application you will obtain this output:

3.3.2.5 Fifth Step: Starting the music capture

Capturing musical data from your keyboard is very simple with DirectMIDI as soon as you have initialized the input port. If you decided to reserve space to receive system exclusive data in the call to CInPort::ActivatePort, now your application is ready to handle all the incoming events generated by your keyboard, including standard MIDI data. The next code explains how to activate the capture:

  // Activates input MIDI message handling
 CInPort.ActivateNotification();
 // Redirects messages from source global channel 0 to destination
 // global channel 0 over channel group 0 (channels 1-16)
 CInPort.SetThru(0,0,0,COutPort);

// Continues

As you can see, the first line of code activates the notification of all the incoming MIDI messages using an event handler that calls its respective virtual member function already overridden in the first part of the application.

The next DirectMIDI feature to comment is the redirection. Using the redirection (MIDI thru) you can pass MIDI messages from a selected input MIDI port to another output MIDI port specifying the channel group, the source and destination global channel where the messages will be redirected.

The next screenshot shows a SysEx data dump and a normal MIDI data capture:

3.3.2.6 Sixth Step: Upgrading the instrument limit

Do you experiment with new sound fonts? If this is your case, this is your lucky day. DirectMIDI supports loading multiple sounds stored in "Downloadable Sounds files" better known as DLS. This technology is the MIDI manufacturer's standard for soundfont format storage in the state-of-the-art multimedia technology. The current DLS2 file format specifies all the instrument definitions: samples, LFO's, low pass filters, loops and envelope generators which will be downloaded and rendered in the synthesizer that supports this feature. DirectMIDI supports two types of DLS operations which are: High level DLS and Low level DLS.
High level DLS is a way to handle waveform instruments that can be stored in DLS 1.0 and 2.0 file formats. They can be created with an application like DirectMusic Producer that allows to configure visually a wide range of parameters previously explained. Low level DLS allows direct downloading of DLS 1.0 data chunks to the port, providing instrument articulations and region parameters from the application program.

3.3.2.6.1 High level DLS

Using DLS files within your project is very simple. For this, you must only declare an object of CDLSLoader type in order to load and unload the instrument files. You will also need to declare a CCollection object to store the collections of instruments and a CInstrument object to keep a reference to a particular instrument. The code below shows how to load and unload a set of instruments to the port.

    // Initialize the Loader object

    CLoader.Initialize();

    // Loads the first dls file
    CLoader.LoadDLS(".\\Media\\sample.dls",CCollectionA);

    // Loads the deafault GM collection of the software synthesizer
    CLoader.LoadDLS(NULL,CCollectionB);


    // Structure of the instrument information
    INSTRUMENTINFO InstInfo;
    DWORD dwInstIndex = 0;

    // Enumerates instruments in CollectionB
    while (CCollectionB.EnumInstrument(dwInstIndex++,&InstInfo) == S_OK)
    {
        cout << "Instrument name: " << InstInfo.szInstName  << endl;
        cout << "Patch in collection: " << InstInfo.dwPatchInCollection
                     << endl;
        cout << "----------------------------------------" << endl;
    }


    // Gets the instrument with index 214 from the CollectionB
    CCollectionB.GetInstrument(CInstrument1,214);
    // Assigns it to the MIDI program 0
    CInstrument1.SetPatch(0);


    cout << "\nSelected instrument: "
      << CInstrument1.m_strInstName << endl;
    cout << "Source collection patch "
      << CInstrument1.m_dwPatchInCollection <<
    " to destination MIDI program: "
      << CInstrument1.m_dwPatchInMidi << endl;


    // Gets the instrument with index 0 from the CollectionA
    CCollectionA.GetInstrument(CInstrument2,0);
    // Assigns it to the MIDI program 1
    CInstrument2.SetPatch(1);
    cout << "\nSelected instrument: "
      << CInstrument2.m_strInstName << endl;
    cout << "Source collection patch "
      << CInstrument2.m_dwPatchInCollection <<
    " to destination MIDI program: "
      << CInstrument2.m_dwPatchInMidi << endl;

    // Sets the note range

    CInstrument1.SetNoteRange(0,127);
    CInstrument2.SetNoteRange(0,127);

    // Downloads the instruments to the output ports
    COutPort.DownloadInstrument(CInstrument1);

    COutPort.DownloadInstrument(CInstrument2);

    cout << "\nInstruments downloaded" << endl;
    cout << "Playing with the instrument:"
      << CInstrument1.m_strInstName << endl;
    cout << "Press a key to play with the second instrument..." << endl;

    COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(PATCH_CHANGE,0,0,0),0);
    COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(NOTE_ON,0,40,127),0);

    getch();
    COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(NOTE_OFF,0,40,0),0);

    COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(PATCH_CHANGE,0,1,0),0);
    COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(NOTE_ON,0,60,127),0);

    cout << "Playing with the instrument:"
      << CInstrument2.m_strInstName << endl;
    cout << "Press a key to exit the application..." << endl;

    getch();
    COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(NOTE_OFF,0,60,0),0);
    // Continues

The first line of code initializes the loader object which calls the Win32 function CoCreateInstance and instantiates the COM object in the space of the process. Once you have initialized the loader object you can proceed to load the DLS file using the  CDLSLoader::LoadDLS member function which takes a null terminated string representing the file name and a reference to a CCollection destination object where the instruments will be loaded. When the given string is null, DirectMidi will load the standard GM/GS set defined in the memory of the synthesizer. To find out which instruments are residing in the CCollection object, you must call the Collection::EnumInstrument function which takes a counter variable indicating the index of the instrument in the collection and a pointer to an INSTRUMENTINFO structure that will receive the information of the instrument i.e. the name and the patch in the collection.

You can obtain a reference to an individual instrument by calling the overloaded member function CCollection::GetInstrument and giving a reference to an instrument object with the index in the collection. This function will fill the internal members of the CInstrument object with the data of the instrument. The CInstrument::SetNoteRange method activates the keyboard region where the instrument must respond when a note-on is produced. Finally, you will have to provide a destination for the instrument in a synthesizer MIDI program, calling the member function COutputPort::DownLoadInstrument and passing the reference to the instrument object. The next screenshot is a sample of the last code output:



3.3.2.6.2 Low level DLS

DirectMIDI 2.2 enables an application to communicate directly with a port that supports DLS for downloading memory chunks to it. There are two alternatives for downloading data to the port: The first one is to load the waveform from a .wav file that contains the data to playback, and the second one is to generate the waveform in memory using math instructions. In the first case, we need to load the .wav file using the static member function CDLSLoader::LoadWaveFile and providing the next three parameters: A pointer to the string description of the file path, a reference to the destination CSampleInstrument object and a flag indicating the desired access to the file. If the file access flag is the DM_LOAD_FROM_FILE constant, the .wav file is always read from file when required and is useful for huge files. If the flag is the DM_USE_MEMORY constant, the file remains stored in dinamic memory increasing the access speed.
As we said before, the second alternative is to generate a waveform that can be established using the CSampleInstrument::SetWaveForm method, passing a BYTE pointer to the buffer with the data and a WAVEFORMATEX structure containing the format of the waveform (read MSDN for further information). The final destination of the waveform is the CSampleInstrument object which encapsulates the code to perform instrument manipulation. The code below shows these features:

1
2   // Loads the .wav file
3   CDLSLoader::LoadWaveFile(".\\media\\starbreeze.wav",CSample1,
4	DM_USE_MEMORY);
5   // Assigns the patch
6   CSample1.SetPatch(2);
7
8   // Sets a continuous wave loop
9   CSample1.SetLoop(TRUE);
10
11  // Sets additional wave parameters
12  CSample1.SetWaveParams(0,0,68,F_WSMP_NO_TRUNCATION);
13
14  REGION region;
15  ARTICPARAMS articparams;
16
17  // Initializes structures
18  ZeroMemory(&region,sizeof(REGION));
19  ZeroMemory(&articparams,sizeof(ARTICPARAMS));
20
21
22  // Sets the region parameters
23  region.RangeKey.usHigh = 127;
24  region.RangeKey.usLow  = 0;
25  region.RangeVelocity.usHigh = 127;
26
27  // Adjusts LFO
28  articparams.LFO.tcDelay = TimeCents(10.0);
29  articparams.LFO.pcFrequency = PitchCents(5.0);
30
31  // Sets the pitch envelope
32  articparams.PitchEG.tcAttack  = TimeCents(0.0);
33  articparams.PitchEG.tcDecay   = TimeCents(0.0);
34  articparams.PitchEG.ptSustain = PercentUnits(0.0);
35  articparams.PitchEG.tcRelease = TimeCents(0.0);
36
37
38  // Sets the volume envelope
39  articparams.VolEG.tcAttack  = TimeCents(1.275);
40  articparams.VolEG.tcDecay   = TimeCents(0.0);
41  articparams.VolEG.ptSustain = PercentUnits(100.0);
42  articparams.VolEG.tcRelease = TimeCents(10.157);
43
44
45  // Sets the instrument parameters
46  CSample1.SetRegion(&region);
47  CSample1.SetArticulationParams(&articparams);
48
49  // Allocates memory for the download interfaces
50  COutPort.AllocateMemory(CSample1);
51
52  // Downloads the sample instrument to the port
53  COutPort.DownloadInstrument(CSample1);
54  COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(PATCH_CHANGE,0,2,0),0);
55
56  cout << "Ready to play a wave sample instrument" << endl;
57
58  getch();
59
60
61  // Assigns patch 1
62  CSample2.SetPatch(3);
63
64  // Sets additional wave parameters
65  CSample2.SetWaveParams(0,0,68,F_WSMP_NO_TRUNCATION);
66
67  // Sets the instrument parameters
68  CSample2.SetLoop(TRUE);
69  CSample2.SetRegion(&region);
70  CSample2.SetArticulationParams(&articparams);
71
72  // Generates the waveform data
73  // Samples per second
74  DWORD nSamplesPerSec = 44100;
75
76  double nTimeSec = 1.5; // Time duration of the sample
77
78  // Number of samples
79  DWORD nSamples = static_cast<DWORD>(nTimeSec * nSamplesPerSec);
80
81  // Digital frequency of the waveform
82  double Frequency = 1000.0/nSamplesPerSec;
83
84  // Allocates memory for the waveform
85  BYTE *pRawData = new BYTE[nSamples*2];
86
87  // Generates the waveform
88  for(DWORD ni = 0;ni < nSamples*2;ni+=2)
89  {
90  	WORD wData     = static_cast<WORD>(30000*sin(2.0*PI*Frequency*ni) +
91		        5000*sin(6.0*PI*Frequency*ni) +
92		        1000*sin(10.0*PI*Frequency*ni));
93	pRawData[ni]   = static_cast<BYTE>(wData & 0xFF);
94	pRawData[ni+1] = static_cast<BYTE>((wData & 0xFF00)>>8);
95
96 }
97
98  // Format of the waveform
99  WAVEFORMATEX wfex = {WAVE_FORMAT_PCM,1,44100,44100,2,16,0};
100
101  // Sets the waveform into the sample object
102  CSample2.SetWaveForm(pRawData,&wfex,nSamples*2);
103
104  // Allocates interface memory
105  COutPort.AllocateMemory(CSample2);
106
107  //Downloads the instrument to the port
108  COutPort.DownloadInstrument(CSample2);
109
110  COutPort.SendMidiMsg(COutputPort::EncodeMidiMsg(PATCH_CHANGE,0,3,0),0);


In the first lines of the code above we load the .wav file, calling the CDLSLoader::LoadWaveFile static member function and storing the sample in memory.
The first important operation of the download protocol is to assign a MIDI program (patch number) to that sample instrument before downloading it. Thus, we have the CSampleInstrument::SetPatch method (6th line) for this pourpose.

After assigning the patch number, we can choose if we want to loop the sample by using the CSampleInstrument::SetLoop method (9th) and specifying whether we need a continuosly playing sample or a sample which is normally forward played. After setting this parameter we can proceed to adjust additional wave playback parameters like the Key note (MIDI unity playback note) and other ones like attenuation and fine tune (see DirectMIDI online documentation). To perform this we must use the CSampleInstrument::SetWaveParams method (12th).

The next essential parameters for a correct sample download are the regions and the articulations (without setting these parameters the sample will not sound). In the REGION structure we establish the keyboard zone where the instrument must respond to a note-on. For this, we must initialize to zero the structure and then fill its members with the corresponding MIDI ranges (see 23-25th lines). It's important to do the same with the ARTICPARAMS structure (see DirectMIDI online documentation).  This structure contains a set of members that adjust important parameters like LFO, volume envelope (VolEg) and pitch envelope (PitchEg) (28-42th). The DirectMIDI library provides a group of help functions to fill in the member values of the ARTICPARAMS structure. For instance, we have the directmidi::TimeCents function which converts "seconds" to the suitable input format (time cents). Next, call to CSampleInstrument::SetRegion and CSampleInstrument::SetArticulationParams to establish these parameters (46 and 47th).

Finally, you can proceed to download the sample instrument to the output port by using COutputPort::DownloadInstrument, but first you must allocate memory for the internal DirectMusic interfaces which will perform all this, calling to the CSampleInstrument::AllocateMemory method with a reference to the sample object (52th-55th).

The second part of the code seen above explains how to generate a simple 1000Hz waveform with a 44100Hz sampling rate and 16 bits per sample. The lines 78 to 100 show the waveform generation. They allocate memory for the number of required samples: A number proportional to the duration of the playing sound, in this case 1.5 seconds (76th).
Finally, in the 99th line we fill the members of the WAVEFORMATEX structure before calling the CSampleInstrument::SetWaveForm method which will indicate the CSampleInstrument object where the raw-data buffer is allocated (102th).

For the rest of the code,  the parameter setting and downloading operations are similar to those commented in the first part of this section.

Starbreeze.wav volume envelope graph


The generated waveform graph.

3.3.2.7 Seventh Step: Closing down the application

The seventh and last step is to finish the application in a suitable way. To do this, you must call the next member functions before ending your application:

    // Breaks the redirection
    CInPort.BreakThru(0,0,0);
    // Ends the notification
    CInPort.TerminateNotification();

    // Unloads the collections from the loader
    CLoader.UnloadCollection(CCollectionA);
    CLoader.UnloadCollection(CCollectionB);

    // Unloads the instruments from the port
    COutPort.UnloadInstrument(CInstrument1);
    COutPort.UnloadInstrument(CInstrument2);

    // Unloads the sample instruments
    COutPort.UnloadInstrument(CSample1);
    COutPort.UnloadInstrument(CSample2);

    // Frees allocated memory
    COutPort.DeallocateMemory(CSample1);
    COutPort.DeallocateMemory(CSample2);

    // Disposes the memory
    delete [] pRawData;

    // Exit
}
catch (CDMusicException& DMEx)
{
    cout << DMEx.GetErrorDescription() << endl;
}

return 0;
}

If you activated the notification in the input MIDI port object for receiving incoming MIDI events, it is your responsibility to call now CInputPort::TerminateNotification to finish the message handling and tell DirectMusic not to signal any more events. You must also call CInputPort::BreakThru, if you established a thru connection between ports. Also, it is important to unload the collections from memory once they are no longer needed, calling CDLSLoader::UnloadCollection and releasing the internal DirectMusic interfaces calling COutputPort::DeallocateMemory method. The same as the instruments from the synthesizer memory calling the  COutputPort::UnloadInstrument methods.

Although DirectMIDI will free the memory for you in case you forget it, it's a good idea to do it by yourself.

3.3.3 Exception handling

A few readers have reported me about their problems preventing error propagation and avoiding exception situations. I studied the problem and came up with the solution. To solve this, I added a new class to the DirectMIDI scheme for exception handling. This new class called CDMusicException handles all the posible errors and failures produced by an application that uses the library, forgetting the old and tedious use of the FAILED macro.
Basically the object provides three important properties to inform about the error, these are: m_hrCode that informs about the DirectX COM HRESULT code obtained in the DirectMusic interface call, m_strMethod, that gives the method description where the function call failed and m_nLine that returns the line of the module source code where the error was generated.

Besides these three properties, there is an additional method to facilitate the error description. This is obtained by calling CDMusicException::GetErrorDescription() which returns a LPCTSTR string containing a detailed error description when the exception has been caught. You can see an example in the image below:
